| Quantity: | |
|---|---|

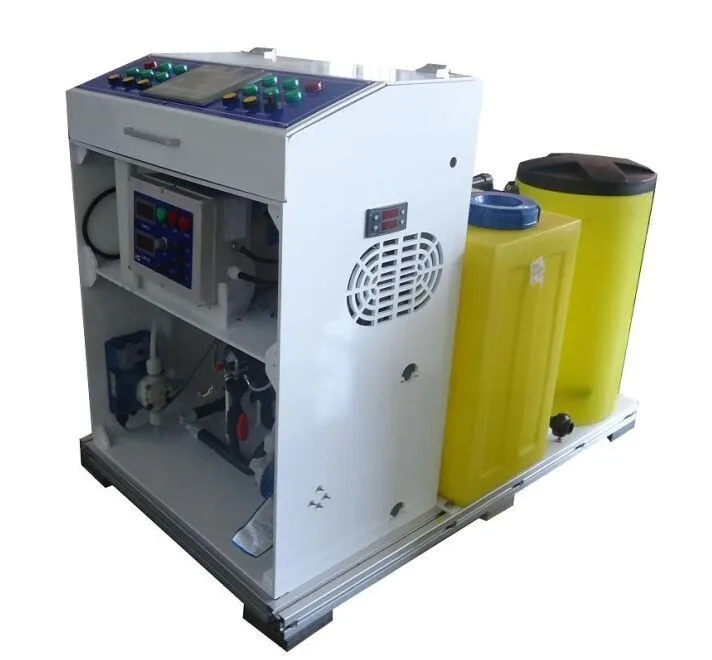

HD-5L-HClO
HADA
1. Process & Operation:
1). Salt will be dissolved in the tank and become saturated brine (25%);
2). Diluted into 3% after filtered ( If use sea water as raw material, it will be treated before electrolysis);
3). Electrolysis in the host machine;
4). The final product- hypochlorous acid liquid (5000ppm) in the storage tank;
5). The hypochlorous acid solution will be injected into the pipe by metering pump;
6). Residual chlorine detective will monitoring the residual chlorine and return feedback to PLC center;
7). PLC center will adjust the speed of dosing pump according to the preset standard.

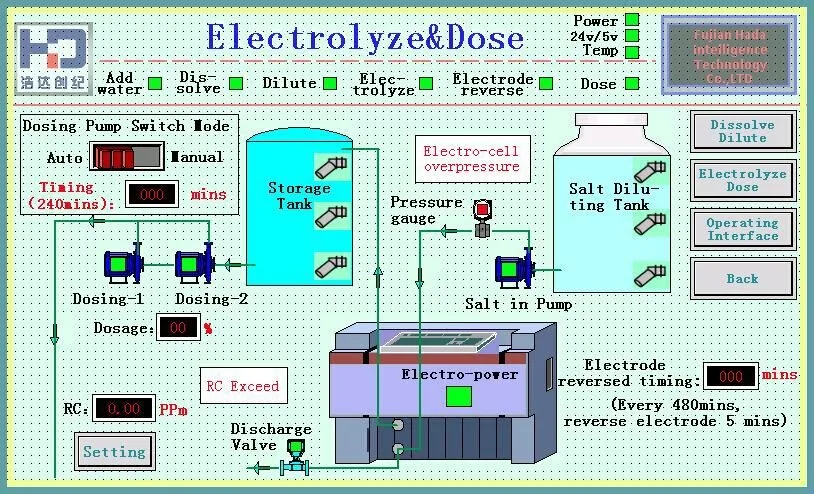

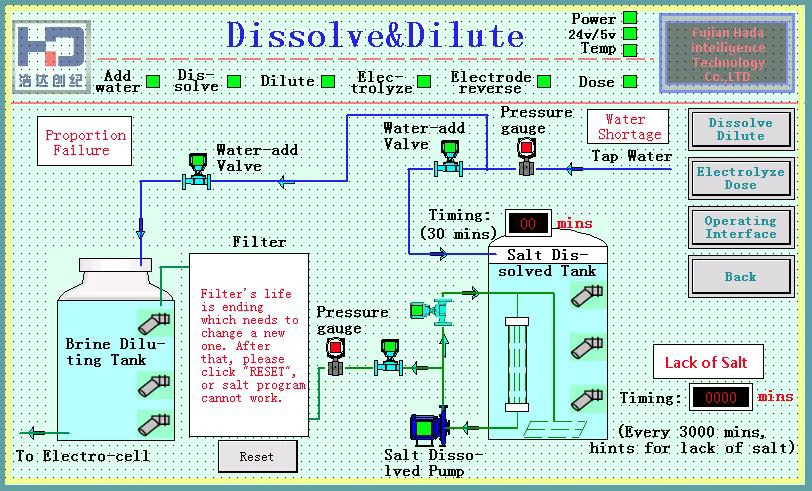

1) Siemens LCD touch screen:
All running status are shown clearly and all parameters can be adjusted directly by the touch screen.

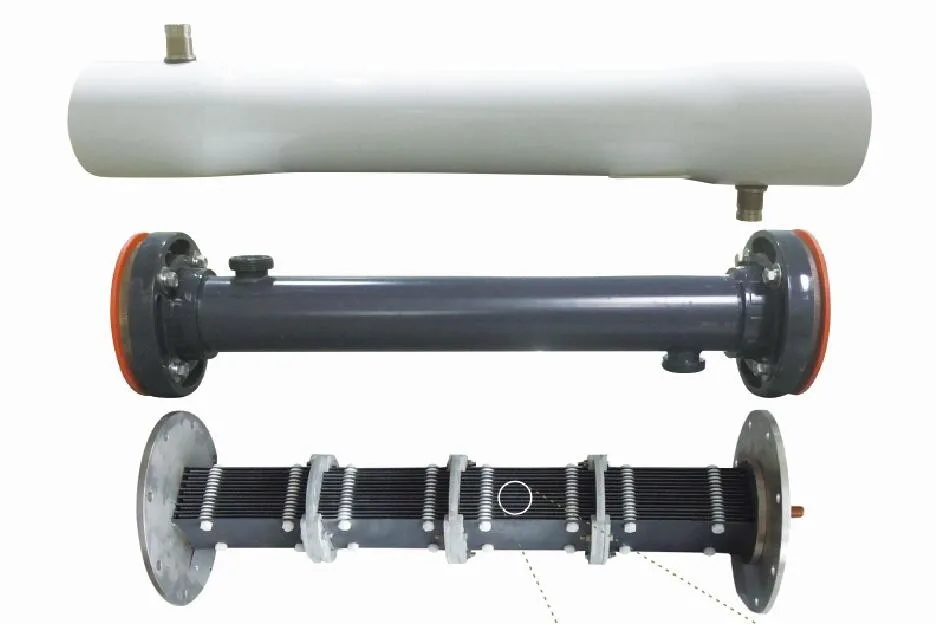

Raw material: Titanium electrode, UPVC shell
Brand: Hada
Guarantee: 5 years
Features:
3mm pure titanium electrode, 25 times coating (secret recipe with ruthenium and irridium), 20um coating thickness, and patented structure design makes it a perfect balance between life and efficiency.

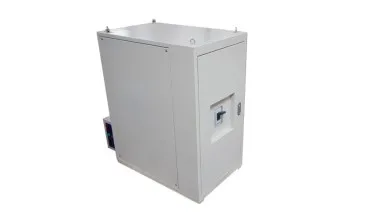

(HIGH FREQUENCY CONSTANT CURRENT)
High-frequency, stablility and constant current power specialized for ship-leveled electrolytic power;
Protection: antiseptic, moisture-proof, dust-proof, under/over voltage alarm, short/ over current alarm, default phase and overheat alarm;
Input voltage: AC335～435V/50Hz±10%;
Output steady flow value: 10%~100% continuous adjustable;
Working temperature: (-20～50)℃;
Relative humidity: 90%(40±2℃);
Electric conversion efficiency: ≥92%;
Load regulation: ≤1% ;
Voltage regulation: ≤0.1%;
Ripple voltage: ≤1% Vout(p-p) ;
Dielectric resistance: ≥20M ;
3. Model:
