150000 ton/d city water plant disinfection system reconstruction Project

At the end of May 2018, our company disinfected and rebuilt 300,000 tons of water plant in Longquanyi District, Chengdu. The disinfection process was prepared on site by sodium hypochlorite generator. The supply and installation and commissioning were completed in June 2018. It is now working with good effect.

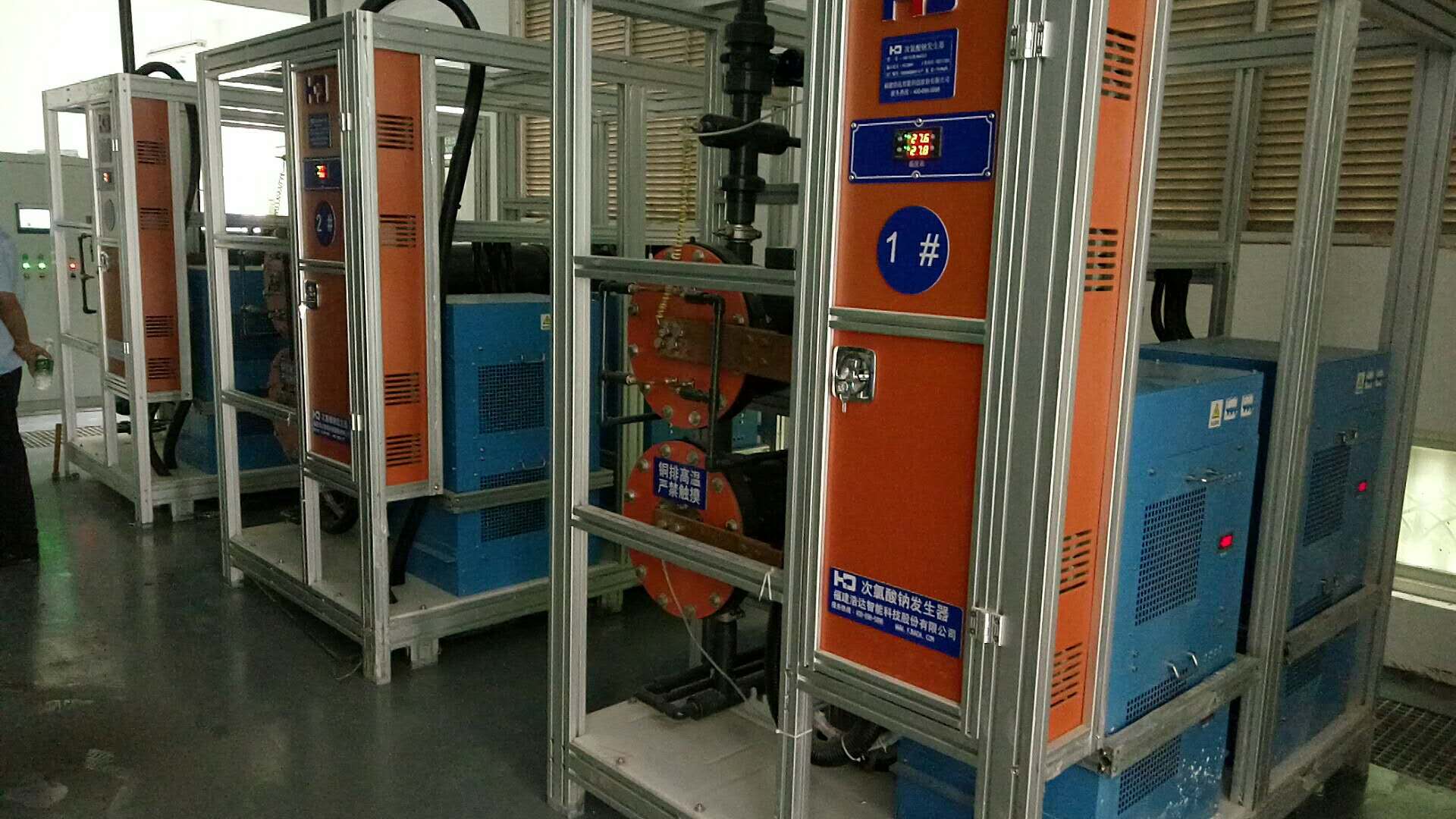

Equipment Name: Split type automatic electrolyzed brine type sodium hypochlorite generator

Equipment model: HD-15.0K-NaClO×3 (two use one stand-by)

Total chlorine production: 45 kg / hour

Chlorine production per unit: 15 kg / hour

Preparation liquid concentration: 8000ppm

Chlorine injection: two parts per million

Use function: chlorination of clear water tank

Salting cycle: 15-30 days

Operation mode: fully automatic operation / Ethernet communication remote control

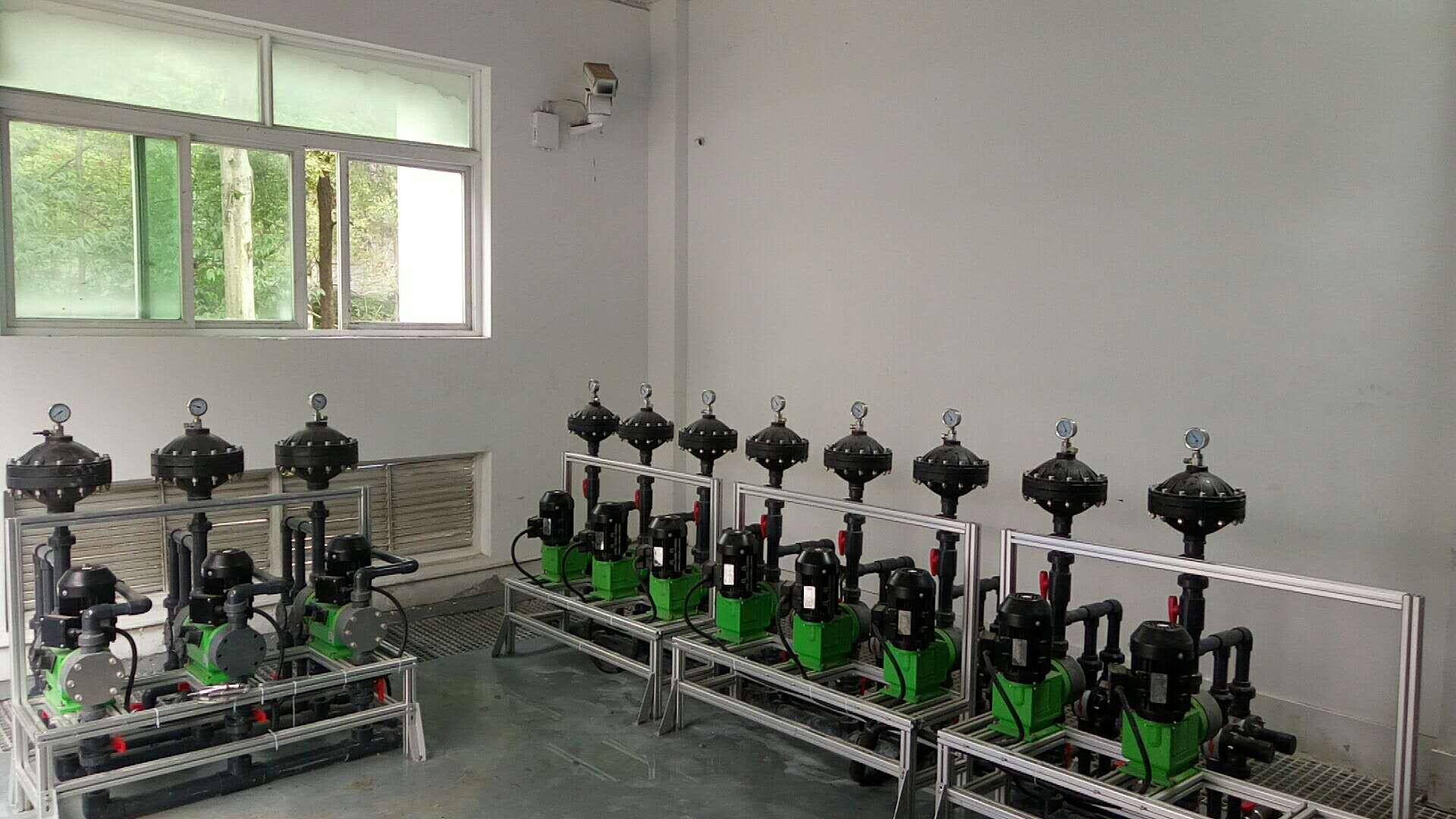

Chlorine injection method: flow value + online residual chlorine value → PLC → frequency conversion signal → frequency conversion pump flow (closed loop feedback frequency conversion chlorine)
